Mastering Slope with Buzon Pedestals
Slope is ubiquitous—sometimes intentional, sometimes not. Whether compensating for or creating slopes, architects rely on Buzon Pedestals’ top and bottom slope correction accessories. This post explores the distinctions between the two and guides you on compensating for slopes up to 15-20%, including creating ramps, some of which may be ADA accessible. With the Buzon slope correction system you can also accommodate locally uneven substrates.
Create a Raised, Sloped Walking Surface (Ramp) Over Sloping Substrate

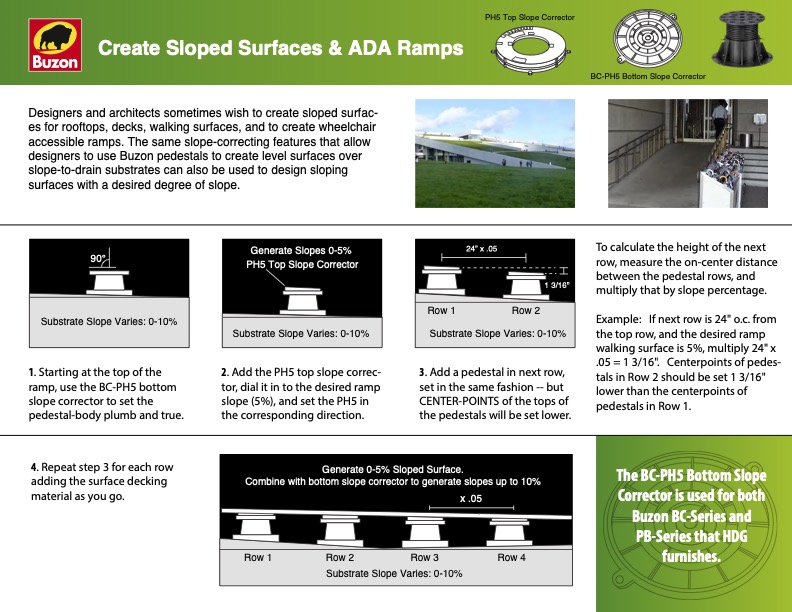

This drawing details how to use Buzon pedestals with top and bottom slope correctors along with grating panels and porcelain pavers to master slope that changes magnitude and direction. Follow these steps to design a sloped walking surface (ramp) including a steep ADA-rated ramp over a substrate that slopes in different directions. This method works for slopes up to 5%.
- Level and true the pedestal bodies
- Attach the Buzon PH5 top slope corrector on the BC series pedestals
- Dial in the top walking surface slope in the direction of the ramp
Creating Inclines and Ramps With Slopes Greater than 5%
If the slopes are greater than 5% for the new ramp, tilt the pedestal bodies and heads in the downhill direction of the ramp as shown. You can see the pedestal bodies are tilted 3% in the downhill direction of the ramp to achieve the total 8% ramp slope.
Multiple BC-PH5 Base Correctors

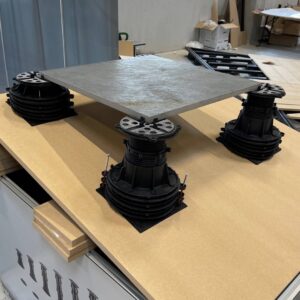

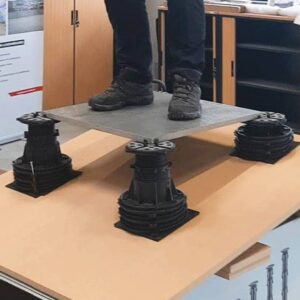

Many commercial rooftops and environments have demanding slopes for effective water drainage. Achieve a perfectly level decking surface by using multiple BC-PH5 base slope correctors, allowing for slope correction of 15-20%.
Master Slope by Combining BC-PH5 and BC-1 Pedestals

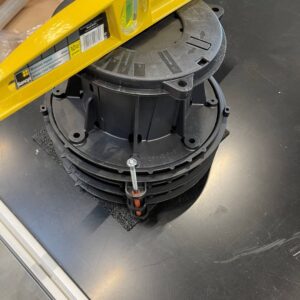

Combine BC-PH5 base slope correctors and Buzon BC-1 pedestals to correct or create even greater slopes. Each added slope corrector adds 5% more slope correction. The BC-1 pedestal nests inside the slope correctors. Each pedestals and slope corrector combination locks together with pins/plugs. Add a top slope corrector to this combination to create a slope surface or ramp up to 15-20%.
PH5 Top-Mounted Slope Corrector
The DPH-PH5 slope corrector snaps onto the head of the BC pedestal. It can be used to slope correct or to create ramps with a desired degree of slope. Each DPH-PH5 compensates slope up to 5% in increments of 0.5%. For use with all pedestals in the BC range. When used in conjunction with the U-PH5 base slope corrector, slope correction of up to 20% can be achieved.
Top Slope Corrector Height Guide – BC-Series
Height guide shows heights of BC pedestals with DPH-PH5 top slope corrector snapped onto the pedestal head. For use with all pedestals in the BC range.
U-PH5 Base Slope Corrector

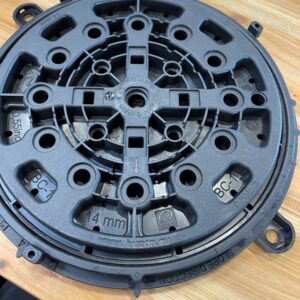

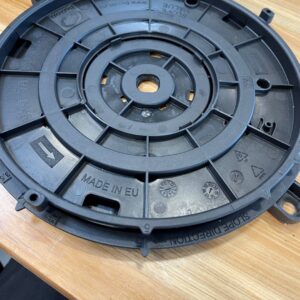

The U-PH5 slope corrector is an adjustable unit equipped with two rotary plates allowing the adjustment of an angle between 0 and 5%. It is placed under the base of Buzon BC or PB series pedestals to achieve a horizontal (slope-corrected) or inclined terrace as desired. The U-PH5 Key foot accessory allows installers to keep the orientation of the slope corrector fixed when adjusting the height.
Buzon Slope Corrector U-PH5 Installation
Installation guide shows how to install slope correction in conjunction with the Buzon level. Bottom slope corrector is for use with all pedestals in the PB and BC range.
Master slope with Buzon Pedestals: Crafting sloped surfaces and ADA ramps
Designers and architects often seek to create sloped surfaces, whether for rooftops, decks, pathways, level transitions, or wheelchair-accessible ramps. Leveraging the slope-correcting capabilities of Buzon pedestals, one can seamlessly create both level surfaces over slope-to-drain substrates and intentional slopes using the top slope corrector. Explore the guide on crafting sloped surfaces and ADA-compliant ramps in the “PH5 Create Sloped Surfaces & ADA Ramps” section of the Slope Correction Instructions and Examples PDF.
