PB Series

PB Series pedestals provide solutions for raised floor applications in residential and commercial environments. The PB Series has a large pedestal head that is especially suited for supporting hydra-pressed concrete pavers, natural stone pavers, and other heavy materials. Numerous pedestal head accessories provide solutions to common construction challenges. The PB family of pedestals has an adjustable height range of 1-1/8 inch – 38-1/8 inch ( 28 – 955 mm) with optional slope correction. Fixed height pedestals (BC-0 and BC-1) and U-PADS are available to support a range from 1/8 inch (3 mm) to 1-1/8 inch (28 mm).

PB Series Key Advantages

  • Quick to install
  • Easy to adjust
  • Supports heavy loads
  • Compatible with most decking surfaces
  • Built-in anti rotation security device
  • Slope correction
  • Safe on waterproofing membranes
  • 100% recyclable
  • Conceals conduit and services

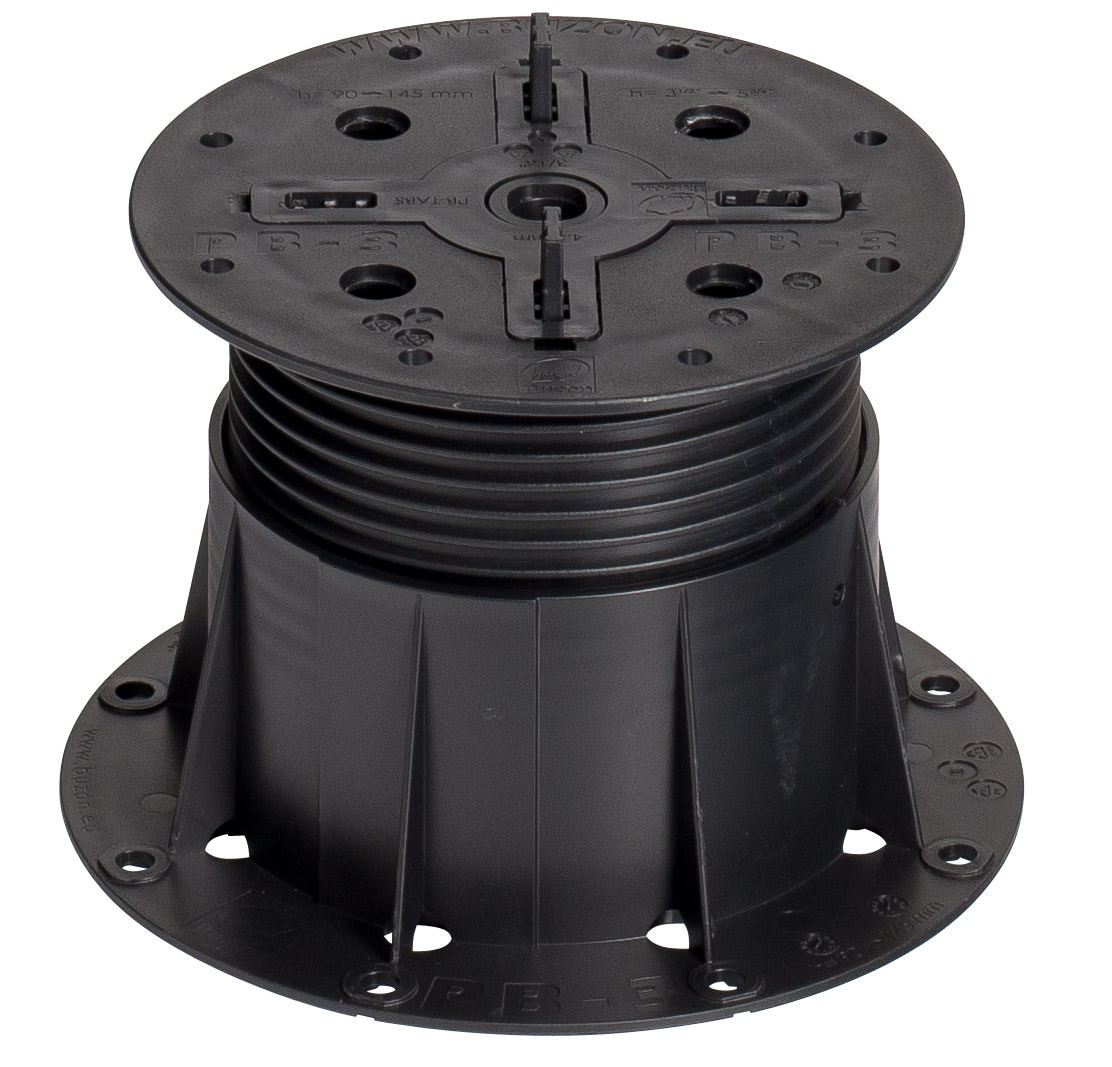

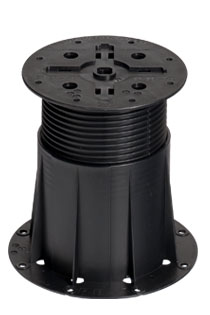

Buzon PB-4 PB Series Pedestals

PB Series Applications

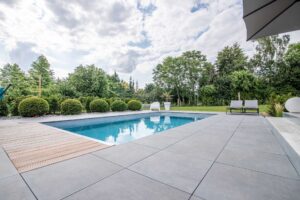

Applications include roof decks, flat roof terraces, patios, balconies, plazas, terraces, swimming pool surrounds, illuminated floors, exhibition stands, water features, fountain terraces, pedestrian walkways, roof access paths, and technical floors for industrial applications. Buzon Pedestals have even been used for game show stage design and car showrooms.

Applications

Broad Material Compatibility

The PB Series adjustable height pedestal is ideal for outdoor terraces with any kind of decking materials: hardwood, composite, Resysta, stone slabs, structural porcelain tile, glass pavers, composite materials, concrete pavers, metal or fiberglass grating. The U-BRS aluminum joists systems is designed to pair with PB series pedestals.

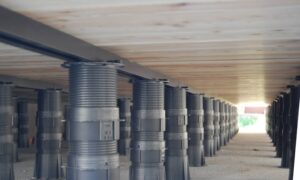

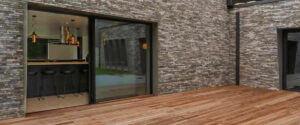

PB Series Pedestals with U-BRS Aluminum Joists and Wood Decking

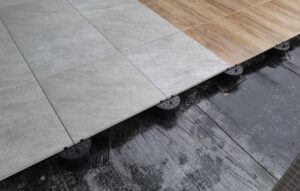

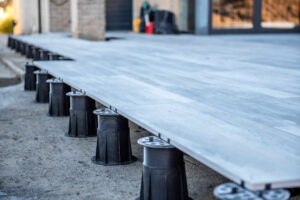

Porcelain Pavers with Buzon Pedestals

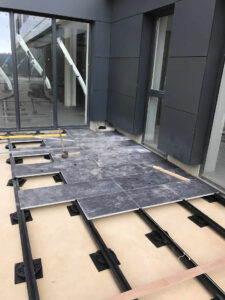

Buzon U-BRS Aluminum Joists with PB Series Pedestals
Walkway with PB Series Pedestals and Porcelain Pavers

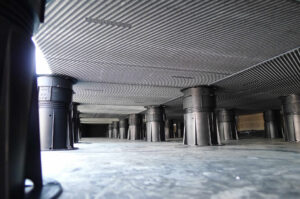

Industrial Metal Grating Supported by PB Pedestals
Example of Using PB Kit Joist Holder and PB-Series Pedestals

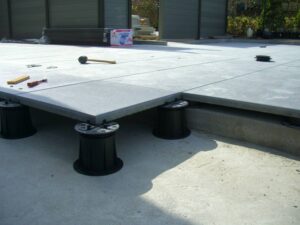

Large Concrete Slabs Over Buzon PB Series Pedestals

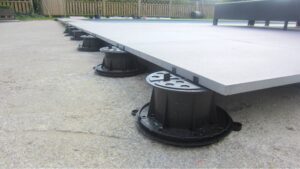

PB Series Pedestals with Shims, Tabs, and Slope Corrector Accessories

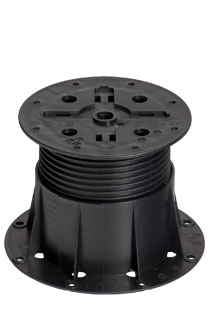

PB Pedestal Configuration

Pedestal Head

  • Screws directly into the base or into riser sleeves to reach desired height
  • Accepts various snap-on accessories to meet construction requirements
  • Extra large surface area provides support for heavy stoneware and concrete tiles
  • PB-4-TOP has a diameter of 6.69 inch (170 mm) and surface area of 35.19 in² (227 cm²)

Couplers

  • Uniquely sized PB-C1 and PB-C2 components allow for stacking to reach desired height
  • Either component screws directly into the PB-4-TOP and PB-4-BASE
  • Safety system prevents detachment when reaching maximum height

Pedestal Base

  • Pedestal base may be simply laid or fixed to substrate
  • Reinforcement ribs increase stability and provide support for heavy loads
  • Design include 8 holes for fastening and an additional 8 holes for drainage
  • The pedestal base may be cut away for positioning against a wall

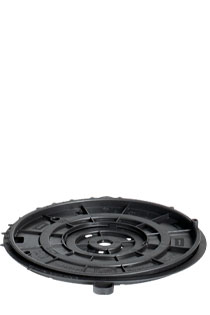

Slope Corrector

  • U-PH5 slope corrector affixes to bottom of pedestal to control slope
  • Installer can dial-in the slope correction to match whatever slope occurs between 0-5%
  • May be used to install horizontal or inclined terraces
  • Integrated locking key locks the corrector at desired level
  • KEY FOOT maintains orientation of corrector while adjusting pedestal height
  • Using multiple slope correctors, pitch can be corrected up to 15%
  • Fastest and most accurate slope corrector on the market — allowing installers to set each pedestal plumb and level in about 10 seconds – literally!
Learn More.

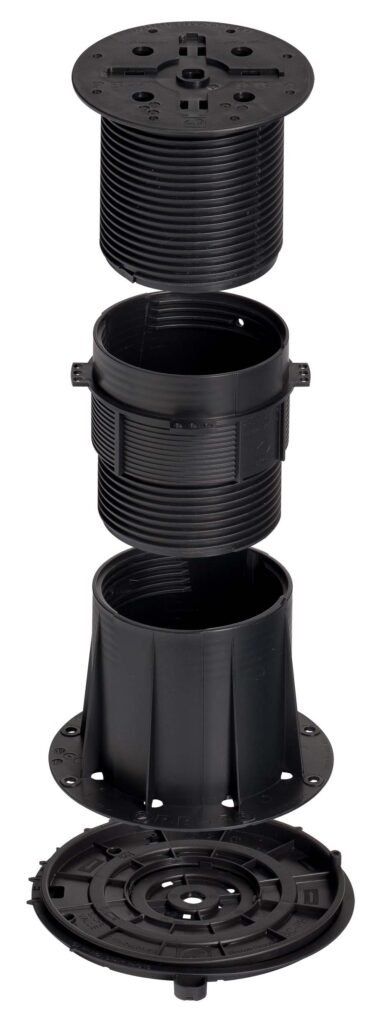

PB Series Pedestal Components Shows Before Assembly

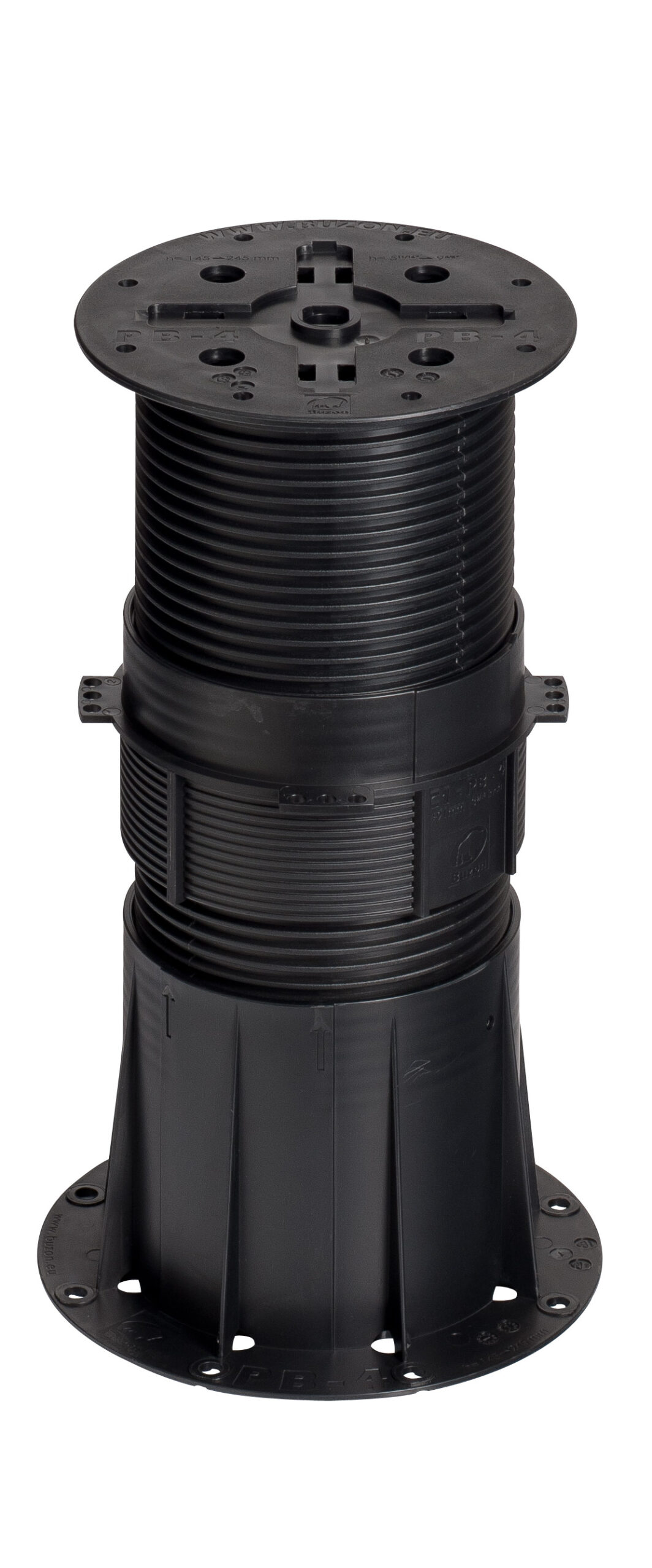

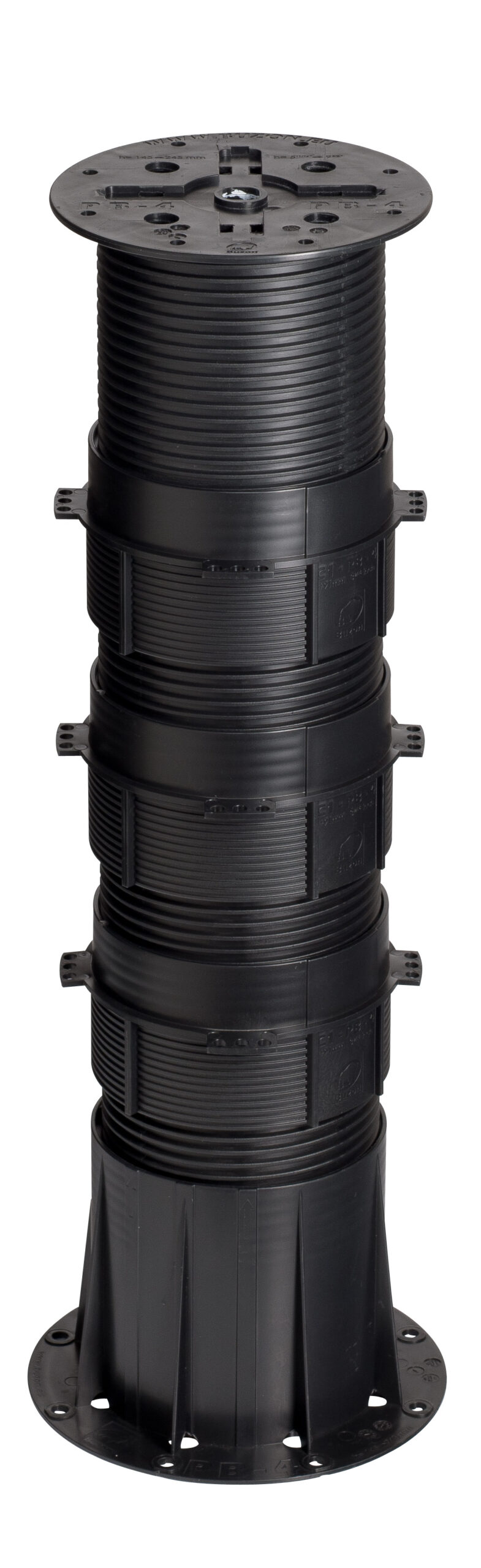

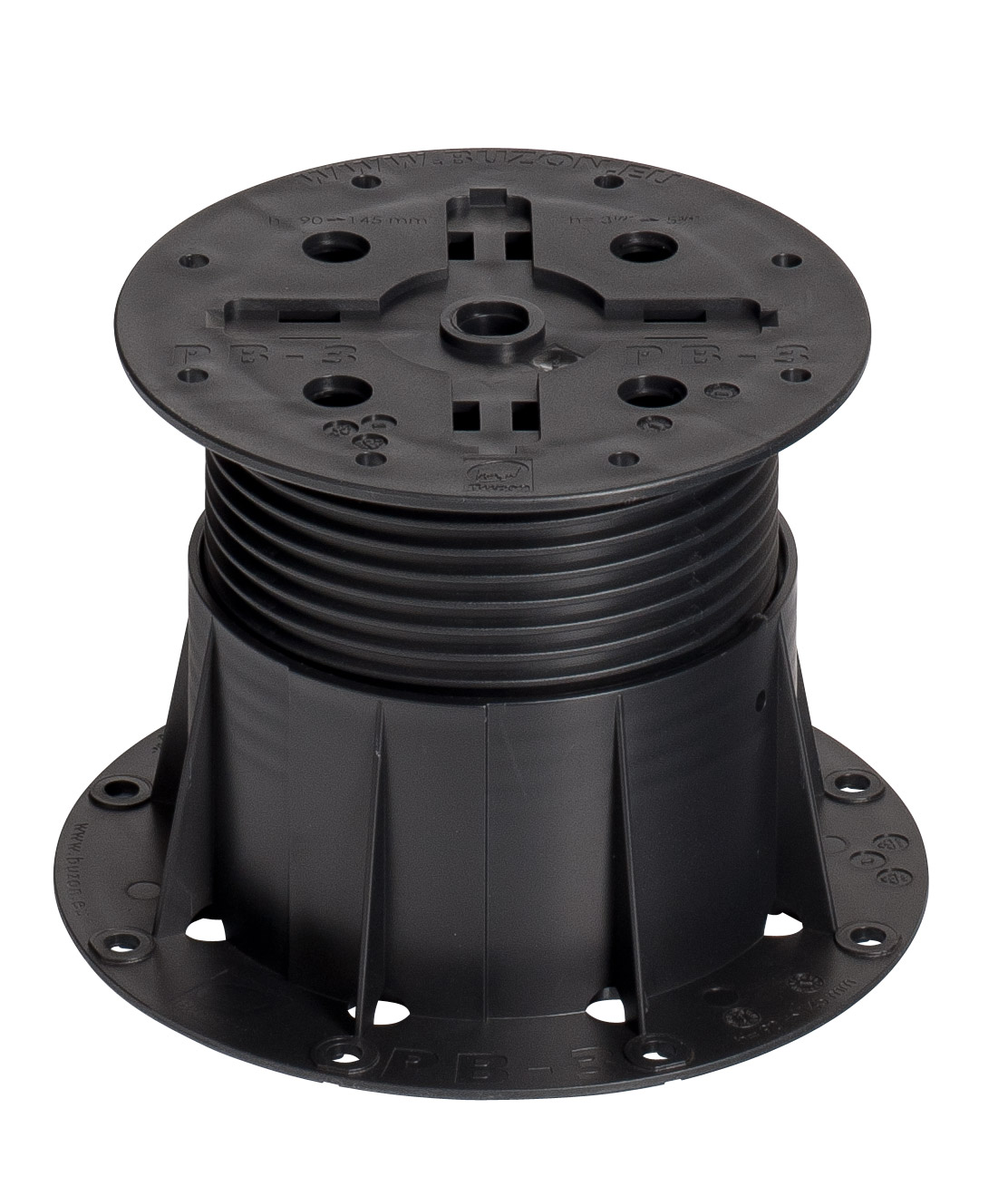

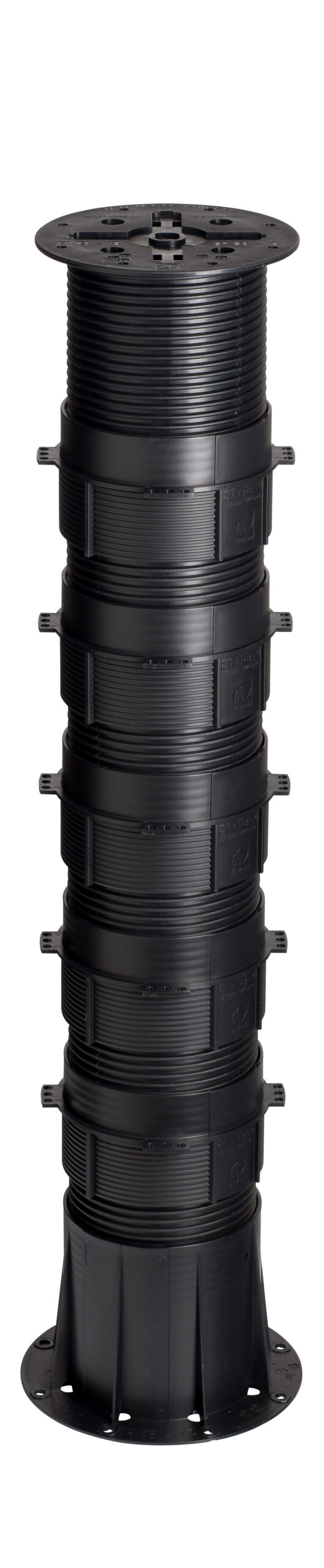

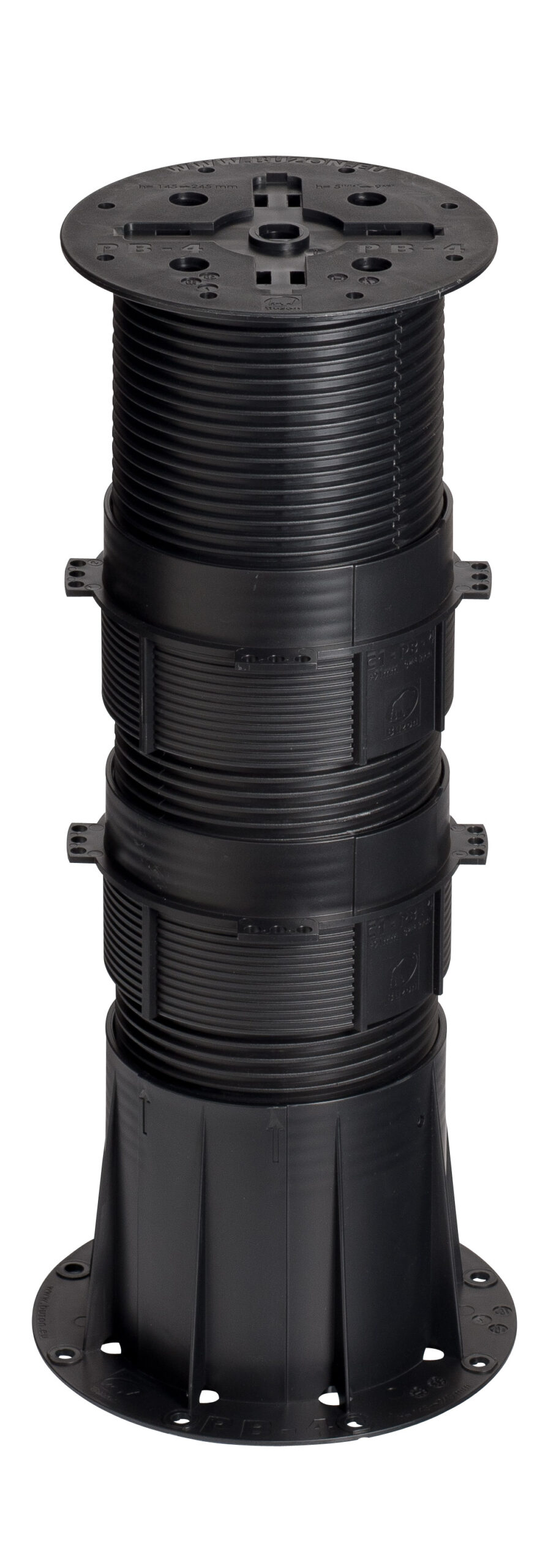

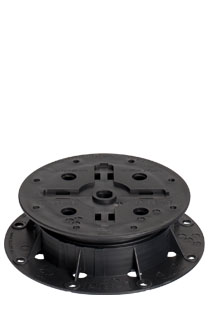

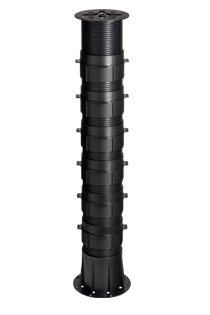

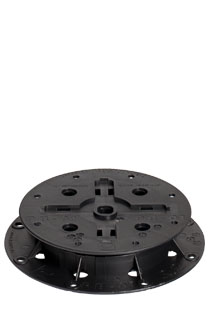

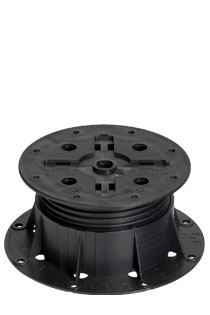

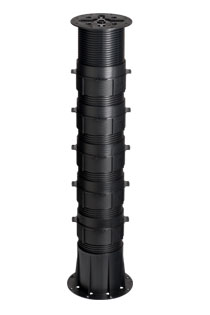

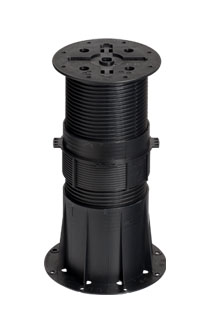

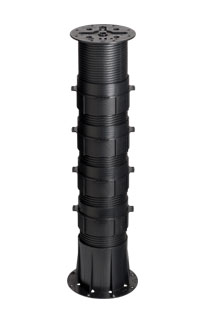

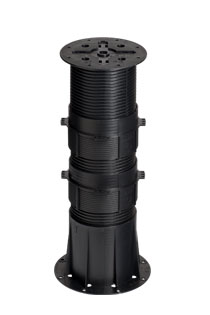

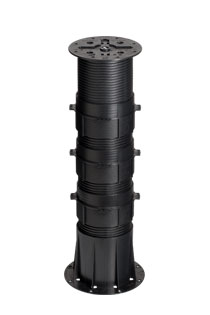

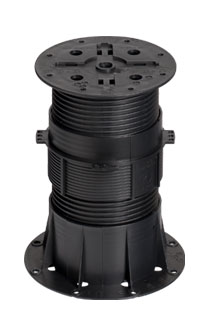

PB Series Family

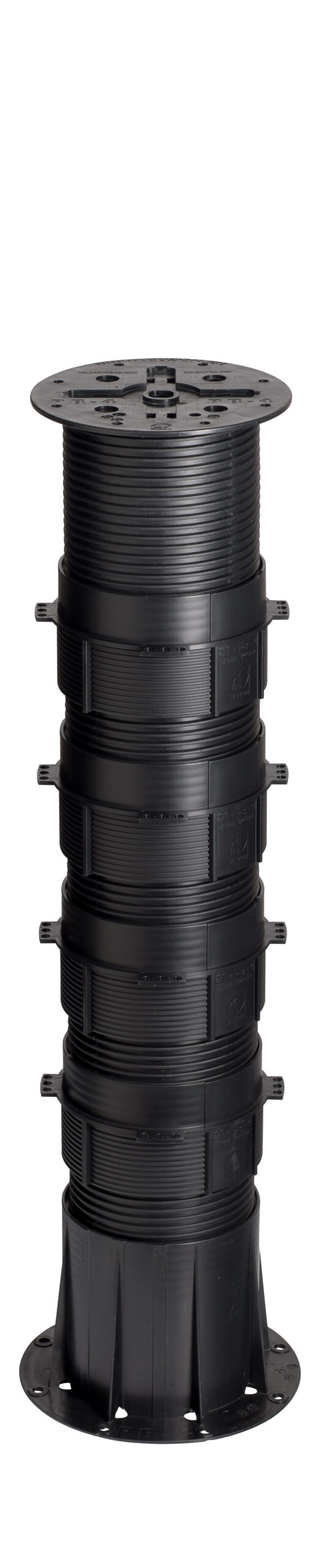

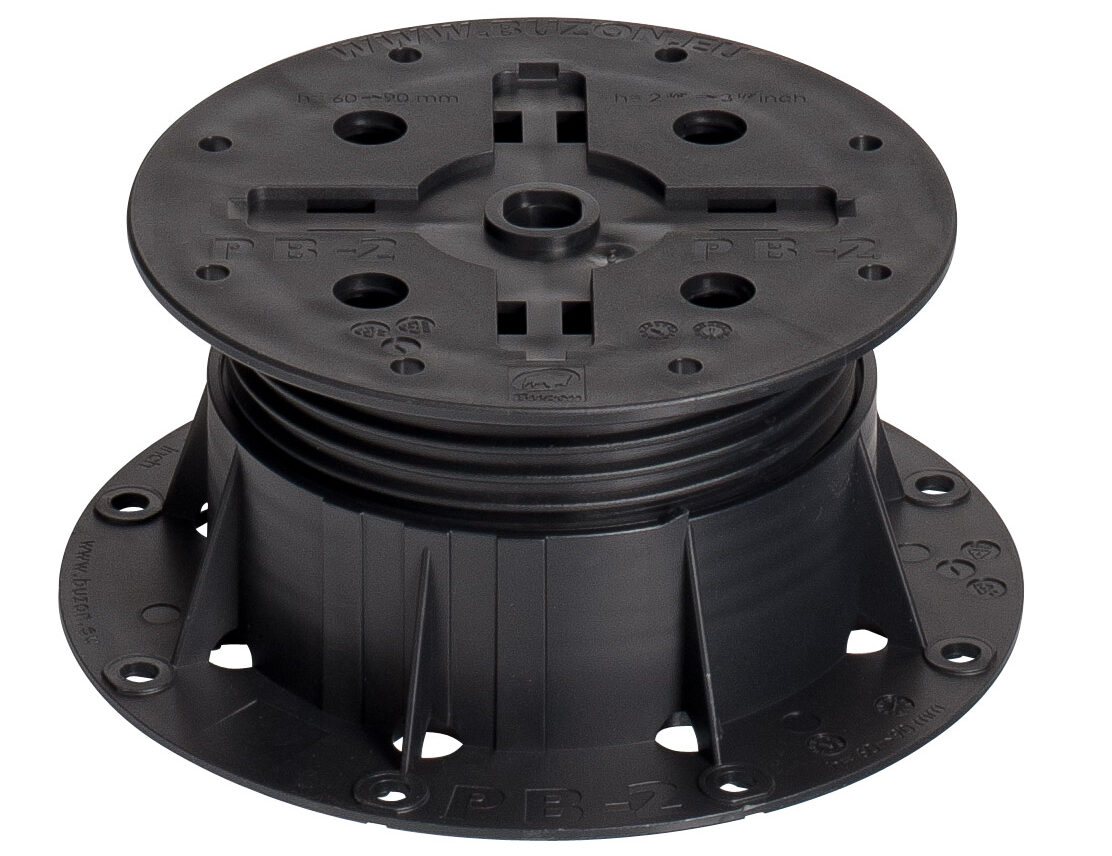

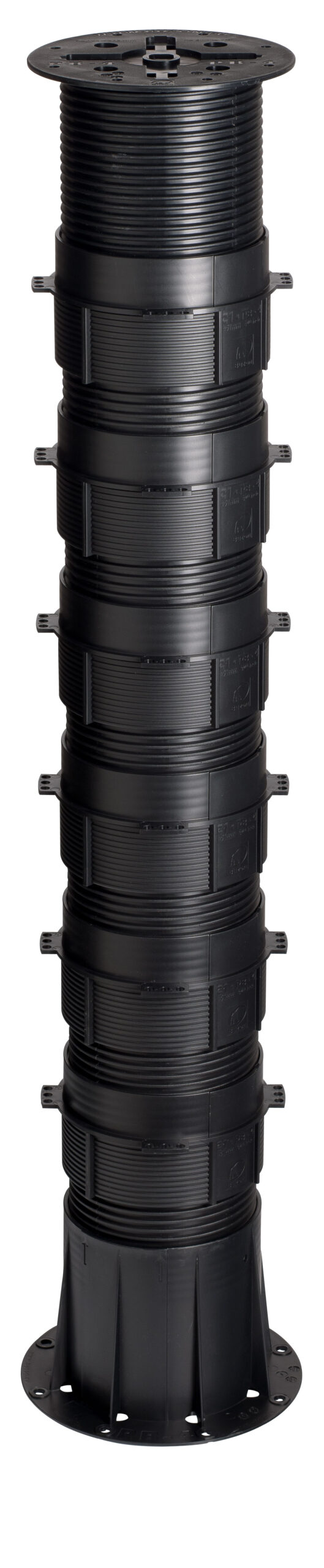

Adjustable pedestals from 1/8 inch (3mm) to 38-1/8 inch (955 mm).

See PB Series Height Chart for heights of pedestal combinations using slope corrector and fixed and adjustable joist holders.

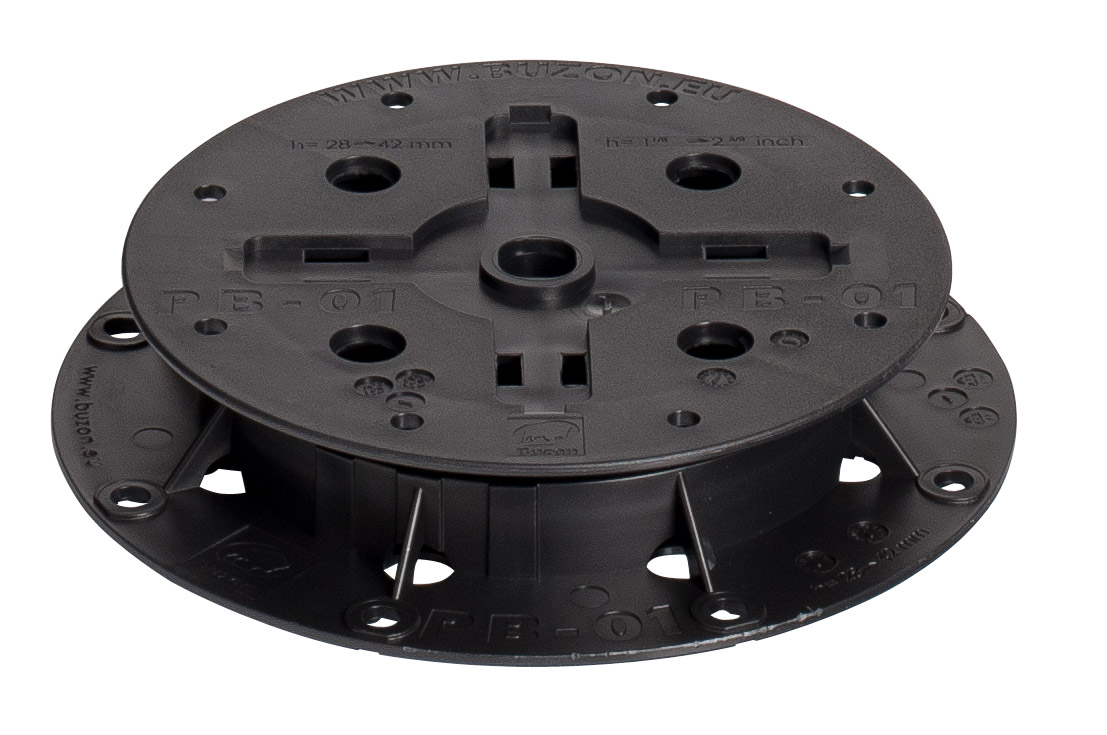

Fixed height pedestals (BC-0 and BC-1) and U-PADS are available to support a range from 1/8 inch (3 mm) to 1-1/8 inch (28 mm).

Learn More.

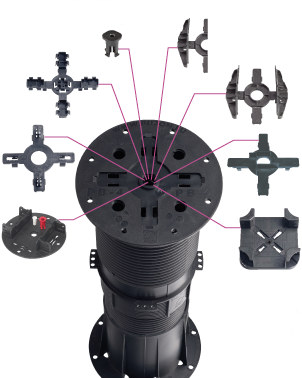

PB accessories

Different accessories can be clipped to the PB pedestal head to accommodate different shapes, sizes, and types of decking materials. Accessories include SHIMS, PB-TABS, PB-KIT-5 joist supports, U-PAD, PB-END, U-WALL, U-EDGE, PB-FASTENER, U-WASHER, and the U-BRS Aluminum Joist System.

Learn More.
Various Accessories for the PB Series Pedestals
