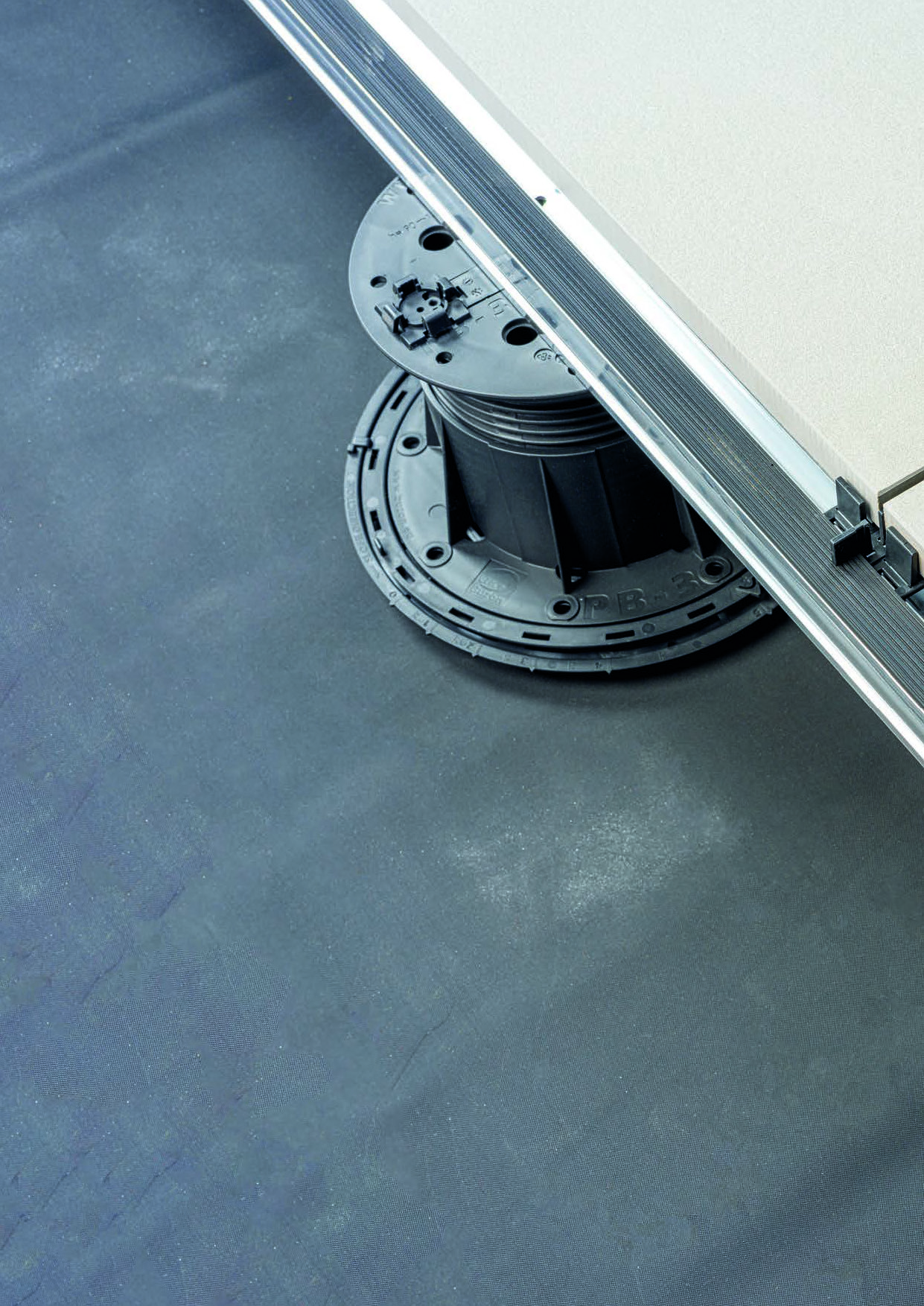

A Smarter, More Efficient Joist System
The E-BRS Easy Rail System provides a complete, high-performance structure for raised outdoor surfaces using ceramic, natural stone, or concrete pavers. Designed for speed, stability, and adaptability, this system includes:
- Adjustable PB pedestals for a secure foundation
- Reinforced aluminum joists for strength and durability
- Tool-free spacer tabs to ensure uniform paver spacing
- A full range of innovative accessories for seamless installation
Why Choose the E-BRS System?
Optimized for Large-Format and Elongated Pavers
- Perfect for large pavers (e.g., 120 x 120 cm) and elongated pavers (e.g., 30 x 120 cm)
- Allows for overhang, simplifying finishing touches and saving installation time
- Straight joists ensure easy leveling, reducing installation effort
- Provides greater rigidity for elevated structures
- Anodized joists prevent reflections and resist corrosion from chlorine, concrete, seawater, and salt
- Choose from 27 mm or 41 mm joists, based on pedestal spacing requirements
Available Versions
The E-BRS joists come in two thicknesses and two finishes:

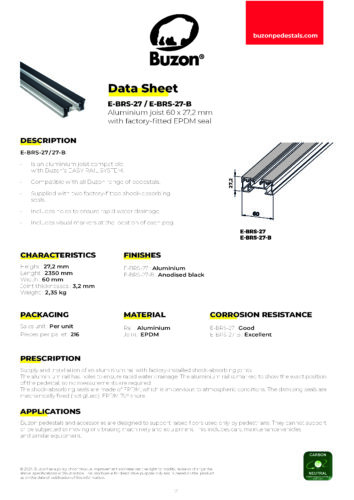

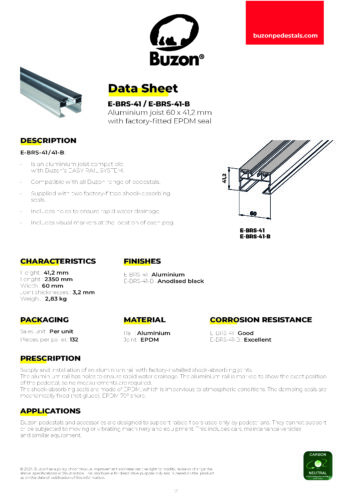

- 27mm and 41mm thickness options
- Natural aluminum or anodized aluminum for enhanced durability
Key Features for Faster, More Reliable Installation
- Factory-Fitted EPDM Rubber: Ensures a secure, durable fit for long-term performance
- Faster Installation & Long-Term Stability: Speeds up the laying process while maintaining structural integrity
- Flexible and Adaptable to Site Features: Easily adjusts to various site conditions and project requirements
- Designed for Large-Format Pavers: Provides strong support and stability for oversized paving materials
Innovative Design Enhancements
- Shims: Factory-installed EPDM shock-absorbing joints for noise reduction and impact resistance
- Drainage: Pre-punched drain holes in the joists allow rapid water runoff
- Position Markers: Integrated guides on each pedestal eliminate guesswork and measurement
Accessories for the E-BRS Easy Rail System
A full range of innovative accessories supports the E-BRS Easy Rail Aluminum Joist System, making design and installation easier, faster, and more precise. In addition to the new integral accessories the slope correction and protection layers also help to round out the usefulness of the system.
Connectors | Tabs | Shims

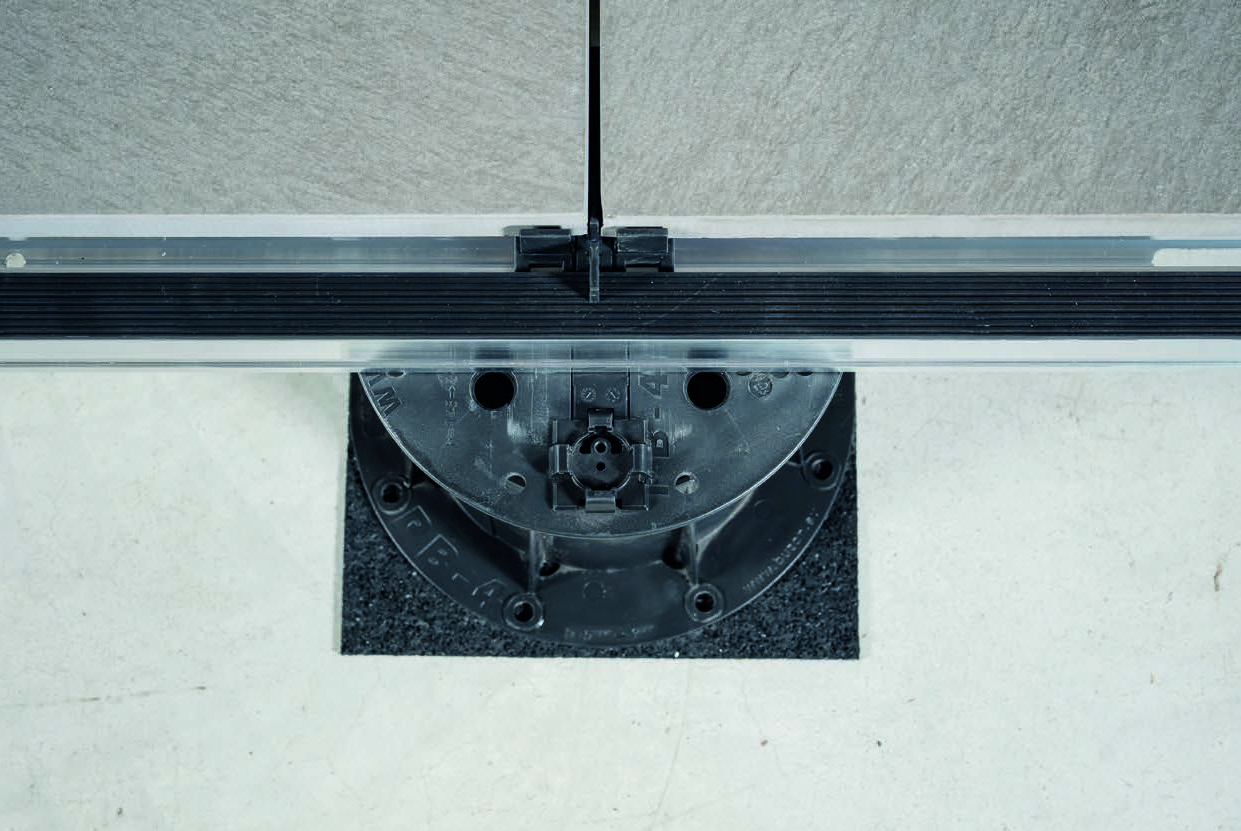

Connectors for Secure Joist Fixing
PB-KIT-2 Connector for PB-01 to PB-11
The PB-KIT-2 connector is used to fix the joist onto the PB pedestals.
- Securely attach joists to PB pedestals without tools
- Five fixing points allow multiple joist connections on a single pedestal
- Compatible with PB pedestals from 28 mm (PB-01 to PB-11)

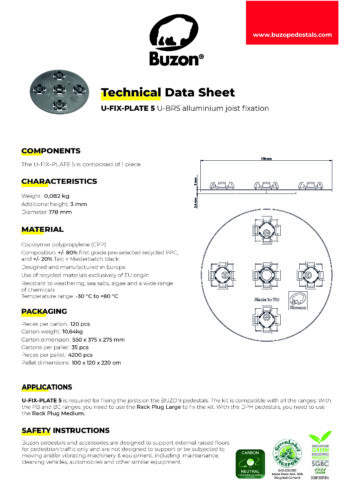

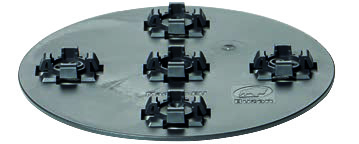

U-FIXING-PLATE-5 for PB-0-S Pedestals
The U-FIXING-PLATE-5 makes it possible to fix the joist to the PB-0-S pedestals.
- Tool-free clip-on attachment using the U-DCW-5R-S mounting interface
- Five fixing points allow multiple joist connections
- Compatible with PB-0-S pedestals from 12 mm to 28 mm (PB-0-S12 and PB-0-S18).
E-BRS-TABS: Invisible, Tool-Free Spacer Tabs
The U-BRS-TABS spacer tabs fit seamlessly into the joist groove, ensuring uniform paver spacing.
- Available in 2, 3, and 4.5 mm thicknesses (17 mm height)
- Tool-free installation: easily slides into place on the joist
- Invisible design: maintains a clean, uninterrupted surface
- Flexible layout: single model with four detachable tabs for any configuration
Shims: Shock Absorption and Stability
The E-BRS-EPDM shims are 3.2 mm thick EPDM rubber seals that integrate seamlessly with the joists, positioned between the aluminum joist and the paver. They are designed to improve installation stability and enhance comfort.
- Noise Reduction: Minimizes impact noises
- Anti-Slip Protection: Helps stabilize pavers for a secure, long-lasting surface
- Durable Construction: EPDM is impervious to atmospheric conditions
- Mechanical Fixing: Securely attached, not glued, ensuring longevity
Shims are an integral part of the E-BRS joists but also available separately in 100 m rolls.
A Complete System for Smarter Outdoor Paving
With precision-engineered components, tool-free installation, and durable construction, the E-BRS Easy Rail System simplifies raised flooring projects while ensuring long-term performance.
- Faster installation
- Greater flexibility
- Long-term durability
